| 品牌 : | 宇虹 | 型號 : | YBC |
| 類型 : | 液壓升降臺 | 加工定制 : | 是 |
| 整機重量 : | 340kg | 額定載荷 : | 150 |
| 低高度 : | 1980 | 寬度 : | 800 |
| 電動功率 : | 1.5 | 材質 : | 鋁合金 |
| 電源電壓 : | 220V | 臺面尺寸 : | 600*600mm |
| 高高度 : | 10M | 底座尺寸 : | 1300*850 |
| 提升高度 : | 8M | 起升時間 : | 60s |
| 產地 : | 山東 濟南 | 是否進口 : | 否 |
| 貨號 : | YBC0.1-10 |
?

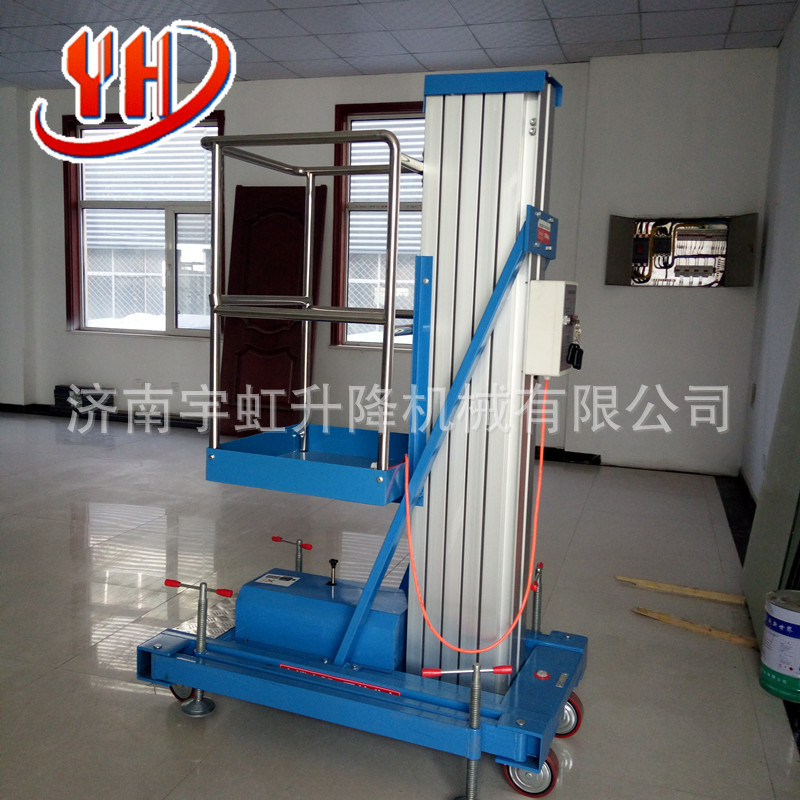

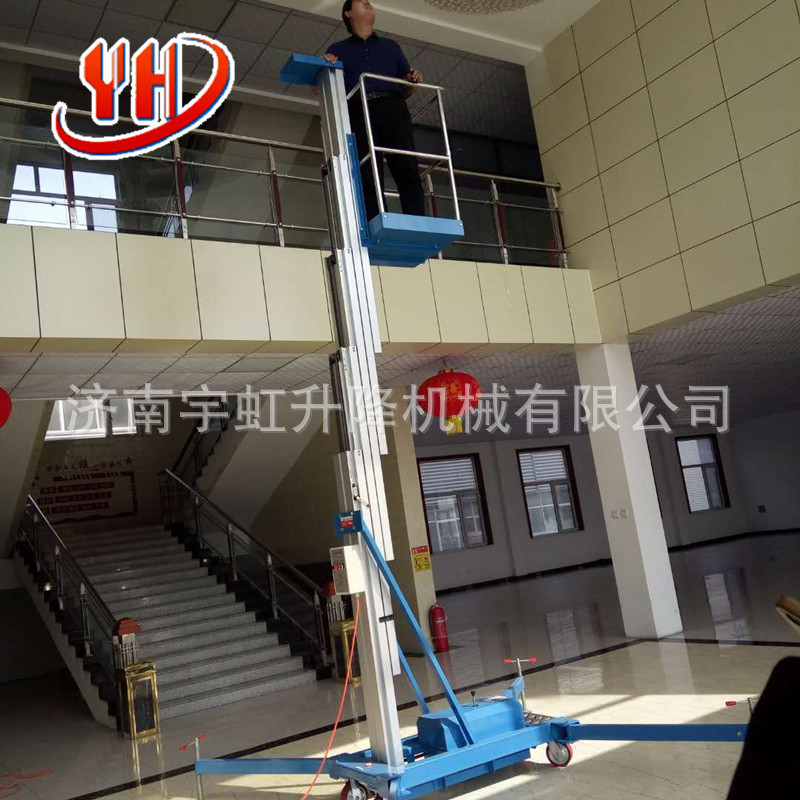

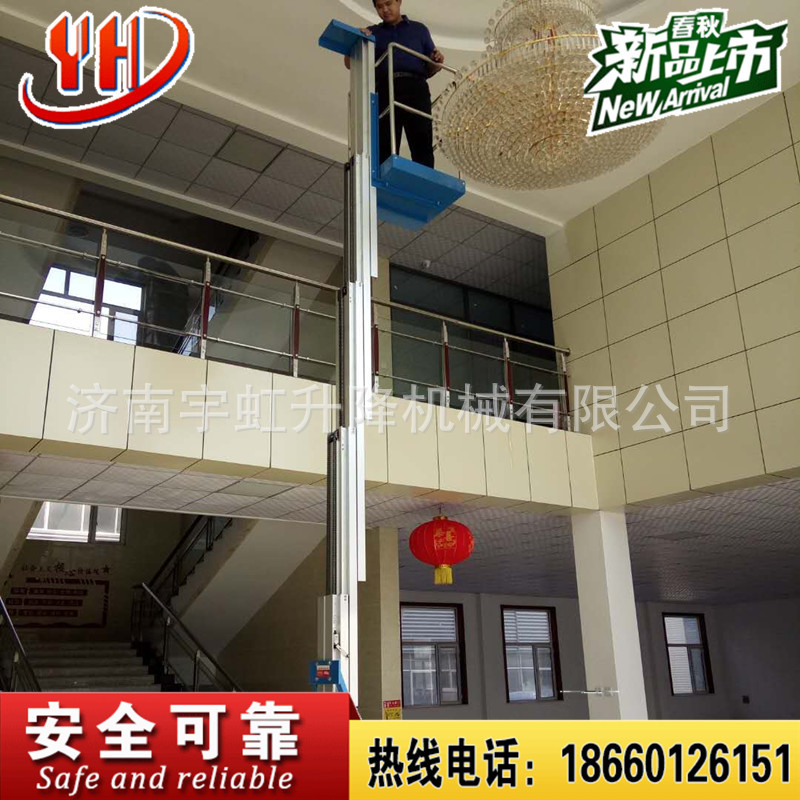

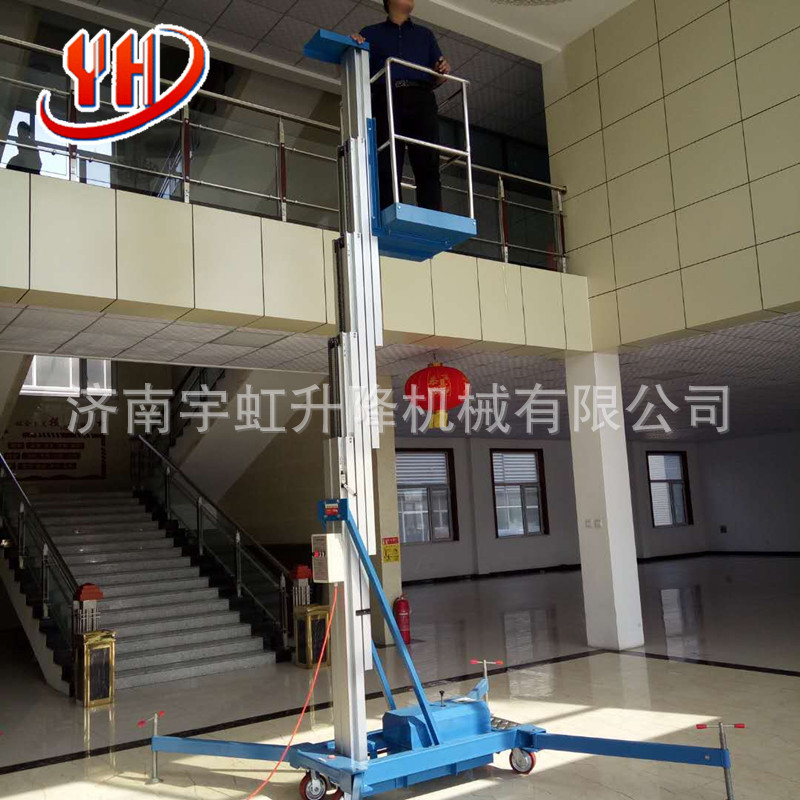

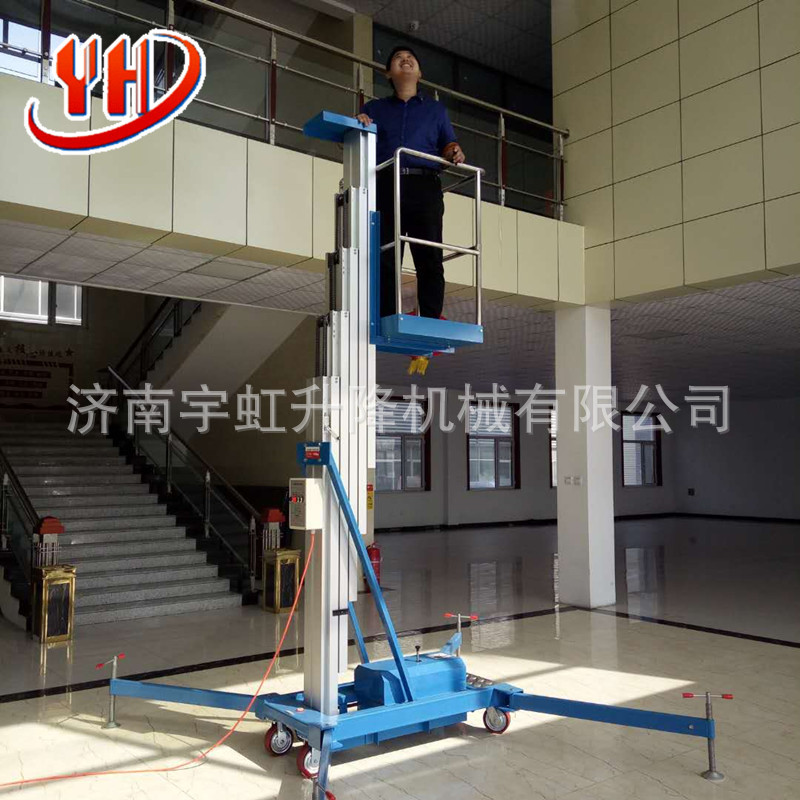

整體采用高強度鋁型材精制而成由于型材強度高，具有造型美觀、體積小、重量輕、結構緊湊、移動方便、升降平臺平穩、操作方便、安全可靠等優點，令高空作業更方便快捷，能夠快速、慢速行走，可調速，是現代企業 安全生產之理想高空作業設備。主要產品分為單立柱鋁合金，雙立柱鋁合金，三立柱鋁合金、四立柱鋁合金.
鋁合金升降機的特點：?
整機重量輕，機動性好，適合單人操作；特制的桅柱間導輪裝置，升降平穩自如；結構緊湊，運輸狀態尺寸小，可進入一般電梯的轎廂以及能順利通過門洞和狹小通道；雙重保護的支腿結構，工作更安全，且可貼近工作面升降作業。
? ?（1）、整機重量輕，機動性好，適合單人操作；
? ?（2）、特制的桅柱間導輪裝置，升降平穩自如；
? ?（3）、結構緊湊，運輸狀態尺寸小，可進入一般電梯的轎廂以及能順利通過門洞和狹小通道；
? ?（4）、雙重保護的支腿結構，工作更安全，且可貼近工作面升降作業；
? ?（5）、根據使用場所高的要求，可做成手動放到或電動放到式升降平臺。以滿足門口比較低時使升降平臺無法進入的情況。?
Whole USES the high strength aluminum refined due to the high intensity profile, with beautiful shape, small volume, light weight, compact structure, convenient movement, smooth lift platform, the advantages of convenient operation, safe and reliable, and make the work high above the more convenient and quick, quick, slow walking, adjustable speed, is the ideal of modern enterprise efficient safety production aerial work equipment. Main products are divided into single mast aluminum alloy, the double column aluminum alloy, the three pillar aluminum alloy, four pillar of aluminium alloy.
?
The characteristics of the aluminum alloy lift:
?
The weight is light, good maneuverability, suitable for single operation; Tailor-made between the mast guide wheel device, steady lifting freely; Compact structure, small size transport state, can enter the general elevator capsules and can pass the gate and narrow channel; Leg structure of dual protection, greater job security, and can be close to the working face lifting operations.
(1), the weight light, flexibility is good, suitable for single operation;
(2), a special roller device between the mast, steady lifting freely;
(3), compact structure, and transport state size is small, can enter the general elevator capsules and smoothly through the gate and narrow channel;
(4), double leg structure of protection, greater job security, and can be close to the working face lift operation;
(5), according to the requirement of the high use place, but make it manually on or power on the lifting platform. A relatively low to meet the door make lift platform cannot enter.
?
